Layers Flyer

Layers is a tool, built on Niagara 4, that allows users to quickly and easily display multiple levels of data for any given zone in a floor plan layout. Layers allows users to easily create responsive, user-friendly, and feature-rich floor plan user interfaces.

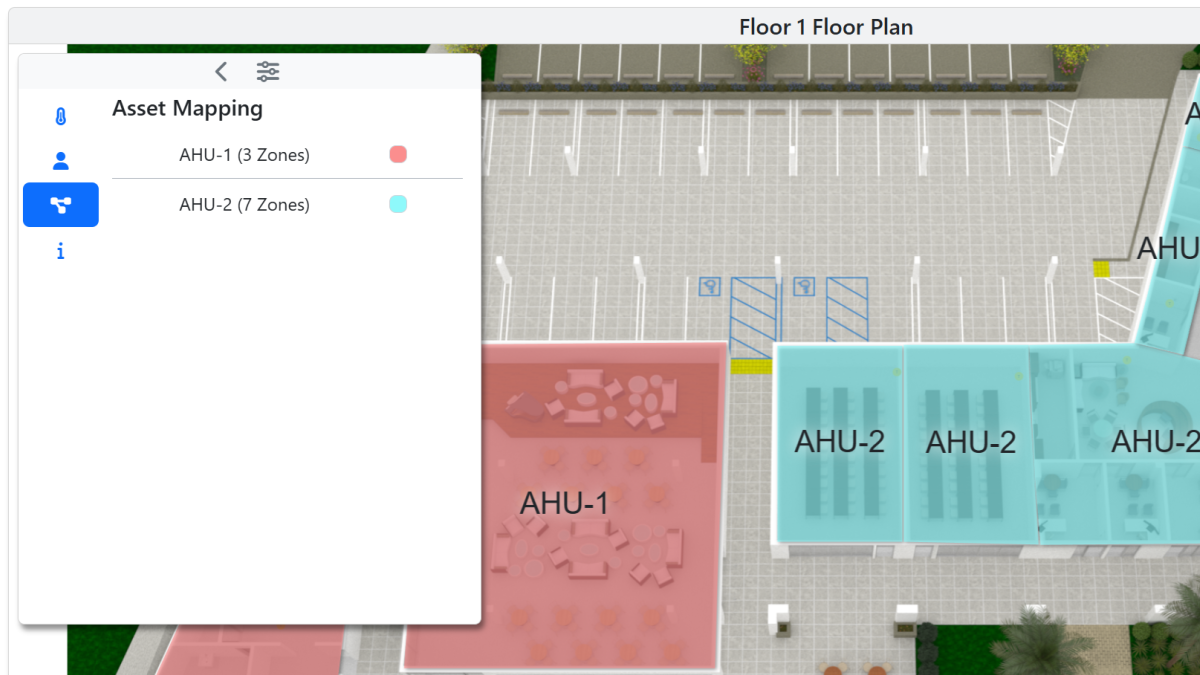

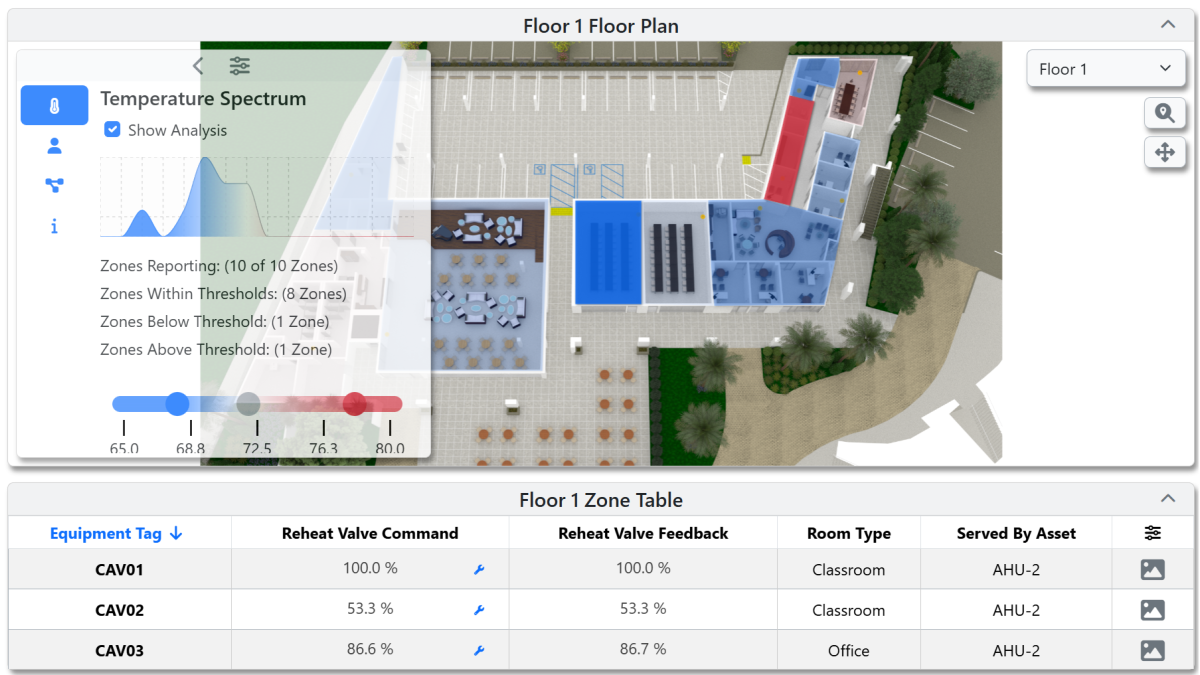

At a click of a button, data for a zone can be overlaid, visualized, and adjusted. The user can display as much, or as little data as desired. Layer by layer information includes: temperature, temperature deviation, relative humidity, pressure, zoning, air-handler mapping, and more.

Using templates, Layers allows the system integrator to easily deploy data across all zones using an intuitive CSV file export/import mechanism. Switching between these viewpoints enhances the usefulness of a floor plan view and brings more value to the overall BAS experience. Layers minimizes the work related to linking and overlaying data to a floor plan.
