NimbusFuncBlocks

Niagara control blocks for wiresheet programming, including fully configurable lead-lag, demand response, and other blocks to streamline sequence of operation programming. Designed with input from BAS veterans with many years of in-field experience, these blocks aim to reduce engineering hours, human error, and number of blocks needed for sophisticated control sequences.

Contact Seller

Price $200.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Details

Table of NimbusFuncBlocks components and their descriptions

Block	Description
AnalogDelay	Delays a numeric change for a set time.
BitsToNumeric	Encodes multiple booleans into a single numeric value.
BooleanFlag	Outputs TRUE when activated and stays TRUE until reset.
BooleanBatchOverride	Sends override/auto commands in batch to control points.
BooleanStatusSelect	Changes output based on Boolean input status.
DemandCounter	Counts activations with time and value hysteresis.
EdgeDetectTrigger	Fires trigger when a signal edge is detected.
EnumBatchOverride	Batched override/auto commands for Enum points.
EnumStatusSelect	Changes output based on Enum input status.
FailHandAlarm	Detects mismatches between command and status.
FloatingOut	Controls floating output devices without feedback.
Hysteresis	Applies time and value hysteresis to a boolean output.
NanInfSelect	Detects Inf/NaN values and provides an alternative.
LeadLag	Manages Lead/Lag systems with up to 32 stages.
Limit	Clamps a numeric value within a set range.
MovingAverageFilter	Smooths input with a configurable averaging window.
NumericBatchOverride	Batched override/auto commands for Numeric points.
NumericStatusSelect	Changes output based on Numeric input status.
NumericToBits	Decodes a number into individual bit outputs.
PlatformReboot	Attempts to reboot the platform.
ShortCycleAlarm	Detects excessive ON/OFF cycling.
SimulateStatus	Assigns custom statuses for testing.
StationRestart	Attempts to restart the station.
StringBatchOverride	Batched override/auto commands for String points.
StringStatusSelect	Changes output based on String input status.
StringToTime	Parses a string into a time object.
TimeDemux	Extracts time components from an input.
TimeOffset	Adds or subtracts a time offset.
WeatherWatch	Fetches weather data and updates Niagara slots.
WeightedAverageFilter	Applies a weighted moving average filter.

Product SKU nm-nimbusfuncblocks2852

Requirements

Niagara version >= 4.10

Reviews

You can not add the review on this product as you have not purchased this product yet.

FAQs

Frequently asked questions

Question: How is the product licensed?

Answer:

The module is licensed through Niagara Licensing and requires an active license on the host id before it can be used.

Question: How do I use X block?

Answer:

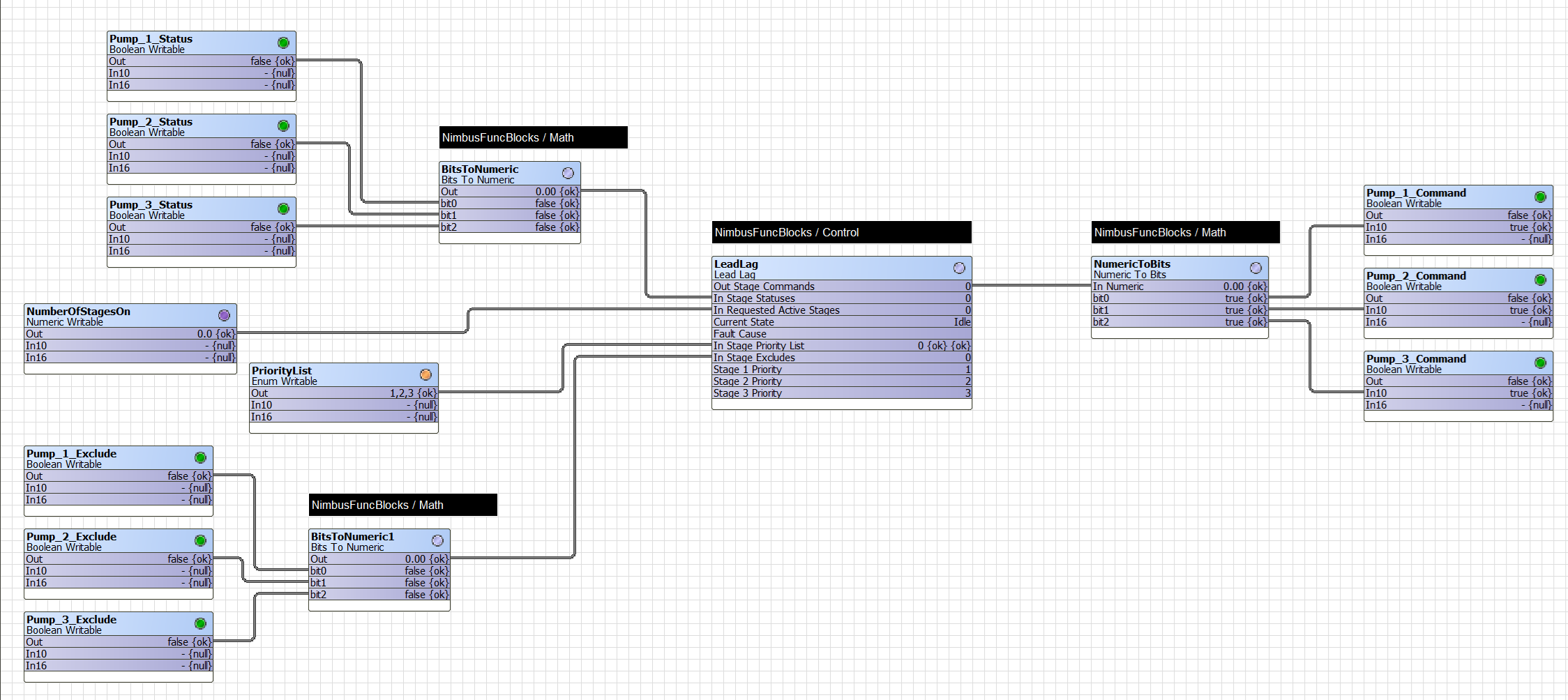

Each block has a dedicated guide page. In Workbench, right-click the block and select Views > Guide Help to access a detailed explanation of its slots and a typical wiring example. There is also an Examples folder in the palette with pre-built typical applications.

Question: Can you add a block to do X?

Answer:

We are eager to help BAS programmers to program stations and sequence of operations quickly, correctly, and efficiently. Please contact us through support@nses.ai with any further requirements.
