OAS Niagara Plant and Function Macros
-

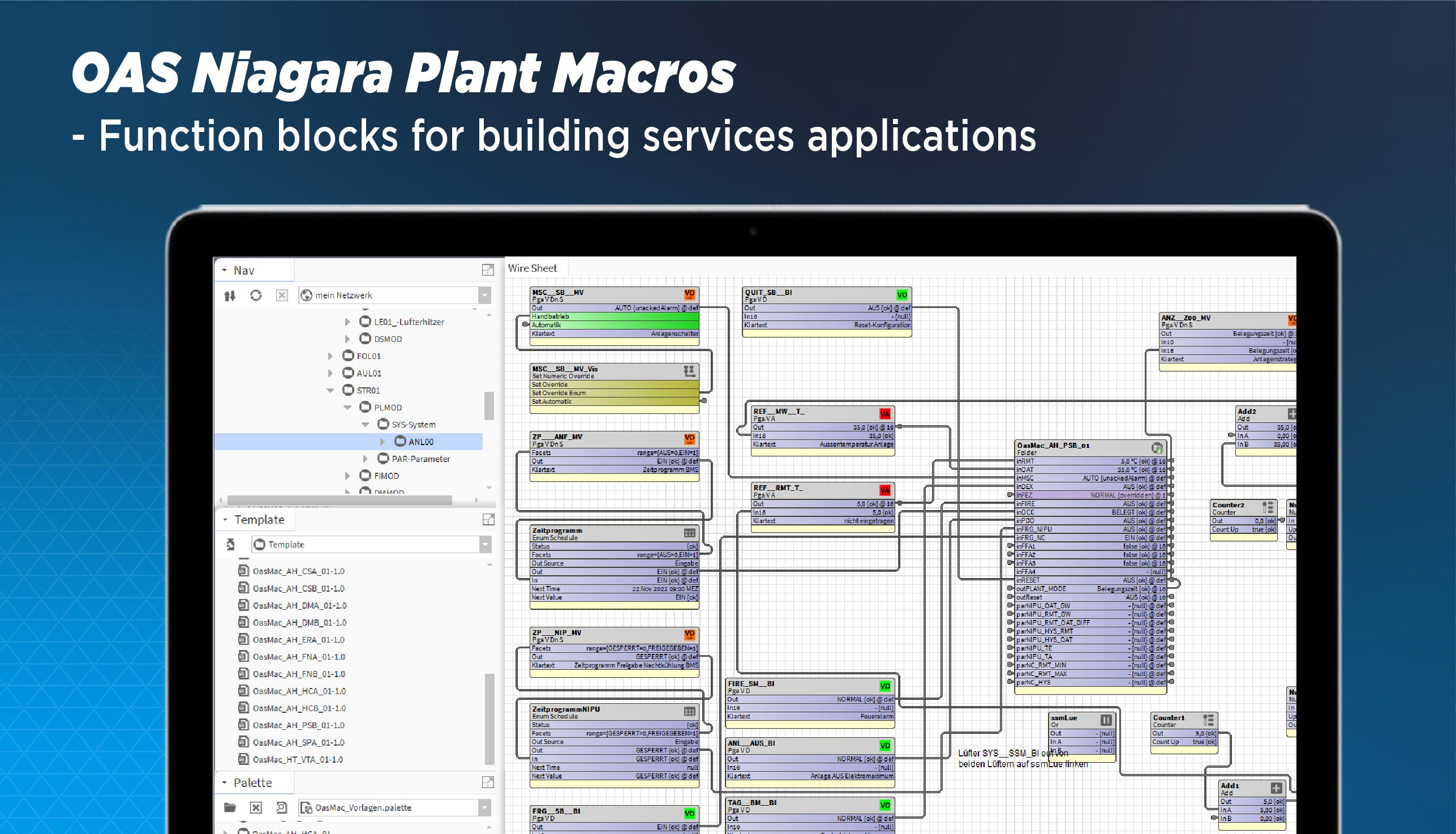

OAS Niagara Plant and Function MacrosOur OAS Niagara Plant and Function Macros - OAS-MACs - are a collection of predesigned Niagara 4 software modules that can be used for building services applications with N4 controllers, such as JACE® 8000. We provide our OAS partners with this extensive collection of plant macros, in which many typical applications are already programmed. A software application for a complex plant is created by putting together the individual function blocks and then simply configuring them, e.g. by assigning the data points and plant parameters. The slots (connections of the function blocks) automatically connect to the correct slots of other function blocks as well as the physical inputs and outputs. The finished application can then be put into operation. -
The Building blocks for OAS Niagara Plant & Function MacrosThe OAS Basic Functions are the building blocks of the OAS Niagara Plant and Function Macros. The module provides handy general function blocks like SR-flip-flop (latch), flank detection or step controller and more. In addition it contains function blocks for easier and faster programming of HVAC plants such as cooling and heating buffers, heating curves etc. - Save costs during project planning and commissioningComplex programming, as is necessary with conventional systems, is no longer required. This leads to significant cost savings in the project planning and commissioning of the system. The resulting software application can always be reused by the partner as a standardized automation solution template.
-
Overview of our OAS Niagara plant macros:The purpose of the OAS Niagara plant macros is to increase the quality for the creation of application programs by providing general purpose function modules. The OAS MACs unify function modules according to the latest state of the art in control engineering, i.e. concepts, methods and strategies that correspond to the current state of the art. All OAS-MACs have been created by experienced application engineers and have been fully evaluated and reviewed before being included in the library. These standard function modules provide solutions for the most common control tasks in the field of heating, ventilation and air conditioning. Available: OasMac_AH_CSA_01 OasMac_AH_CSB_01 OasMac_AH_DMA_01 OasMac_AH_DMB_01 OasMac_AH_ERA_01 OasMac_AH_FNA_01 OasMac_AH_FNB_01 OasMac_AH_HCA_01 OasMac_AH_HCB_01 OasMac_AH_PSB_01 OasMac_AH_SPA_01

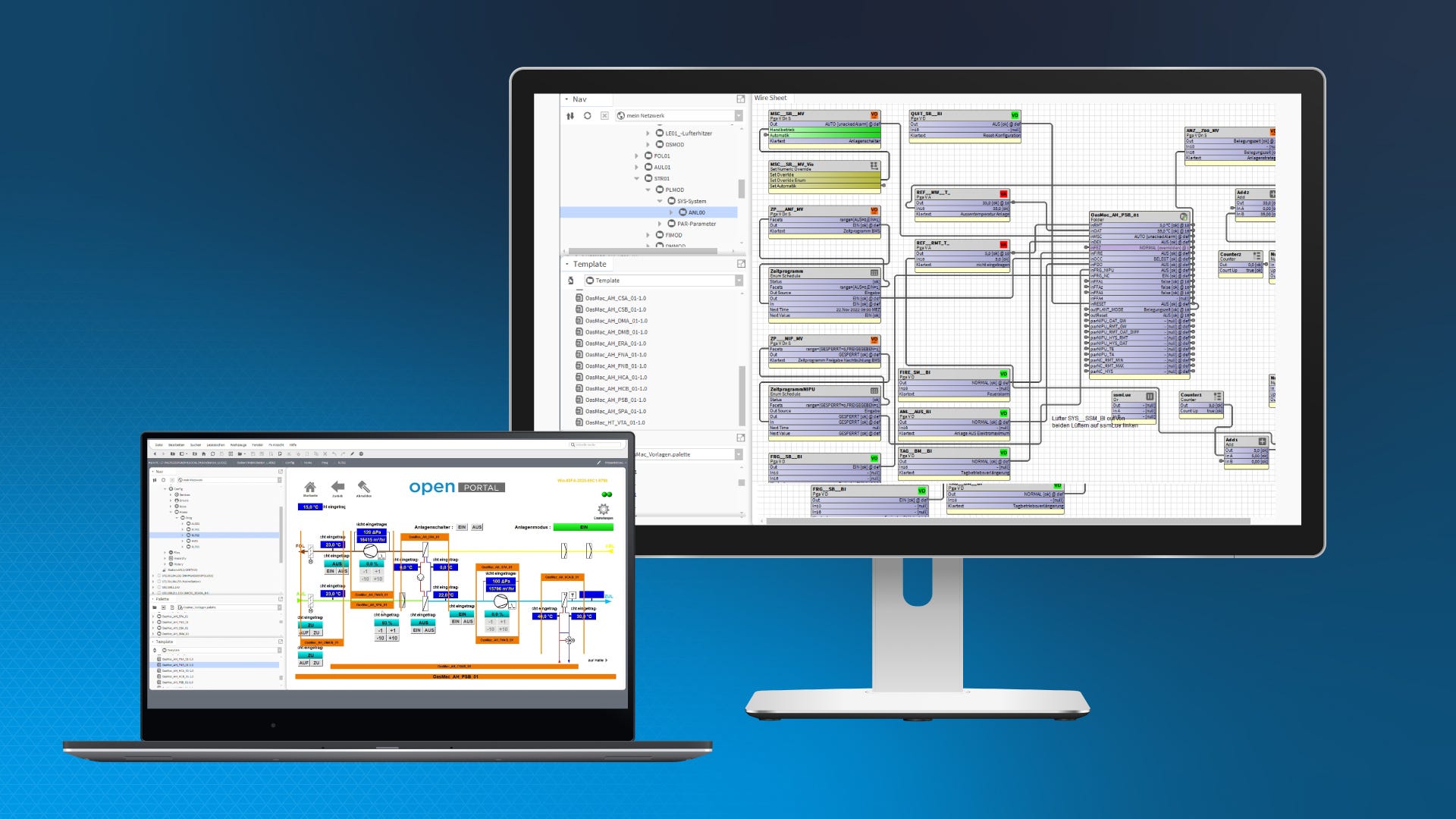

The new plant macros "OAS-MACs" are prefabricated Niagara 4-based software modules. They are used, for example, for the automation of ventilation systems. ventilation systems. The collection of OAS-MACs is used in building technology applications with Niagara 4 controllers, such as the JACE®-8000. It is available to OAS partners after extensive training.
The OAS Basic Functions are the building blocks of the OAS Niagara Plant and Function Macros. They contains function blocks for easier and faster programming of HVAC plants such as cooling and heating buffers, heating curves etc.
Available function modules:
- Ventilation Systems
- OasMac_AH_CSA_01
OasMac_AH_CSB_01
OasMac_AH_DMA_01
OasMac_AH_DMB_01
OasMac_AH_ERA_01
OasMac_AH_FNA_01
OasMac_AH_FNB_01
OasMac_AH_HCA_01
OasMac_AH_HCB_01
OasMac_AH_PSB_01
OasMac_AH_SPA_01
- OasMac_AH_CSA_01
- Heating systems
These function modules follow:
- Refrigeration plants
- General use
Â
N4.8, 4.10
This module is powered by OAS Basic Functions so it requires OAS Basic Functions to be licensed. OAS Basic Functions has no point capacity limits.
Niagara Powered Controller or Supervisor with N4.8, N4.10 and installed and licensed OAS Basic Functions.
Question: Can I use this module standalone?
Answer: Yes, you can use it standalone. However, this module is meant to be a foundation for the OAS HVAC Plant and Function macros (link).
Question: Are there any license limitations for this module?
Answer: (Are there any license limitations in terms of points or devices for this module?) No, you can use it with an unlimited number of points or devices.
Question: I want an additional element added to this module
Answer: (I would like to have an additional element added to this module, what should I do?) If you are missing a specific element or function block, feel free to contact as at sales@oa-systems.de and we will try to help you.
Question: Will there be any templates for heating and cooling?
Answer: (The module only contains templates for ventilation plants, will there be any templates for heating and cooling?) Yes, currently there are only ventilation templates, however, we are working on the heating and cooling templates, which will be coming soon.
| General Sale Support:Â OAS Open AutomationSystems GmbH Phone: +49 7265 / 49 96 522 E-Mail: sales@oa-systems.de Web: https://www.openautomationsystems.store/en/contact |
Software and Product Support:Â Or you can raise a ticket with our OAS Support Portal. |
