OAS I/O WEB Modul Konfigurator

OAS web-based module configurator for efficient and simple integration of up to 16 OAS I/O Modbus fieldbus modules. Configure the inputs and outputs of the module using the web based GUI and retrieve the data from the modules.

Contact Seller

Price $143.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Details

OAS I/O WEB Module Configurator

The OAS I/O WEB Module Configurator is based on the software module OASModbusUtilitiesAsync.

Simple, transparent, effective.

The SBS IOM I/O fieldbus modules enable the connection of digital or analog input and output values with the Modbus protocol. All necessary communication settings are made simply, transparently and effectively with the OAS I/O WEB module configurator.

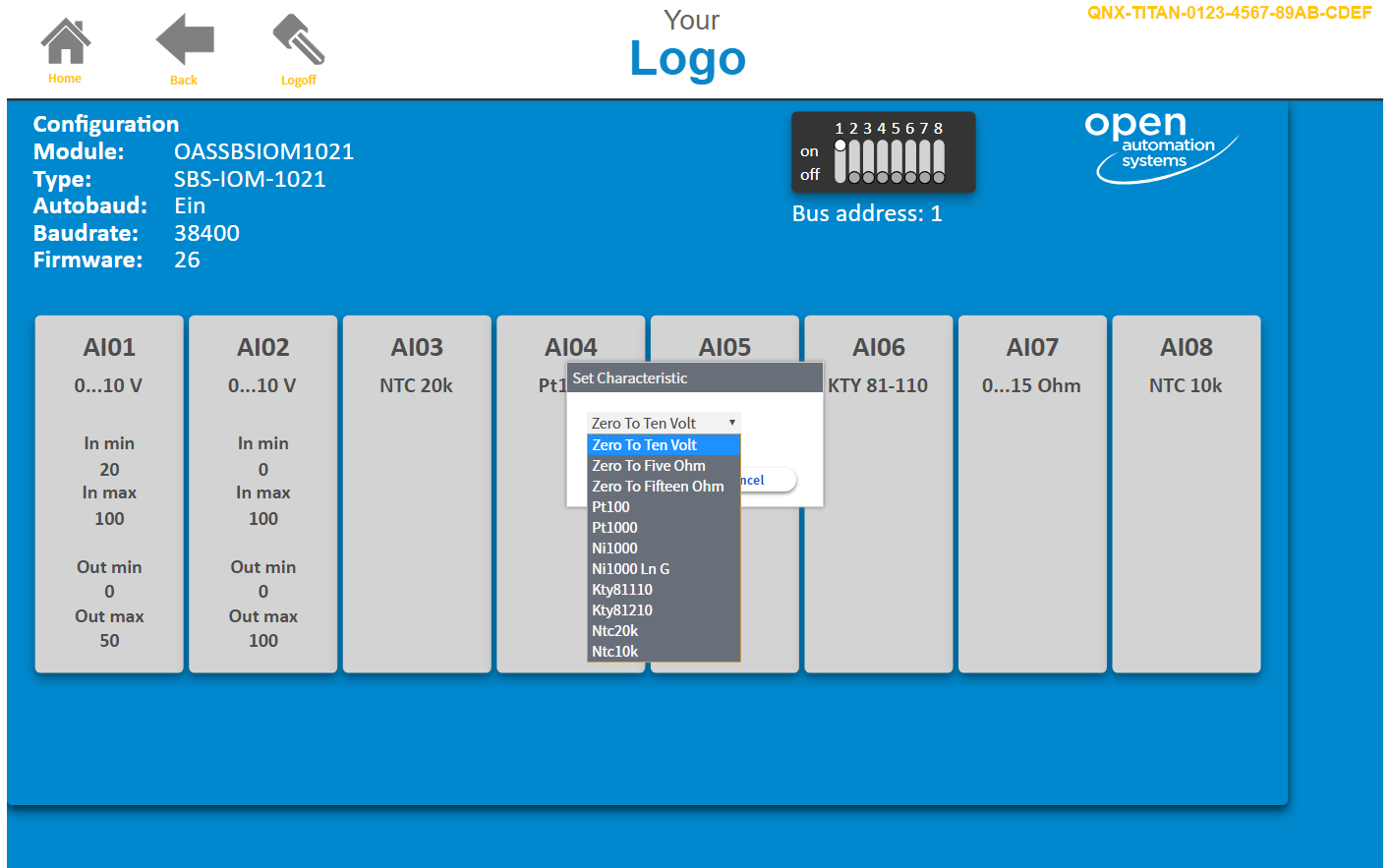

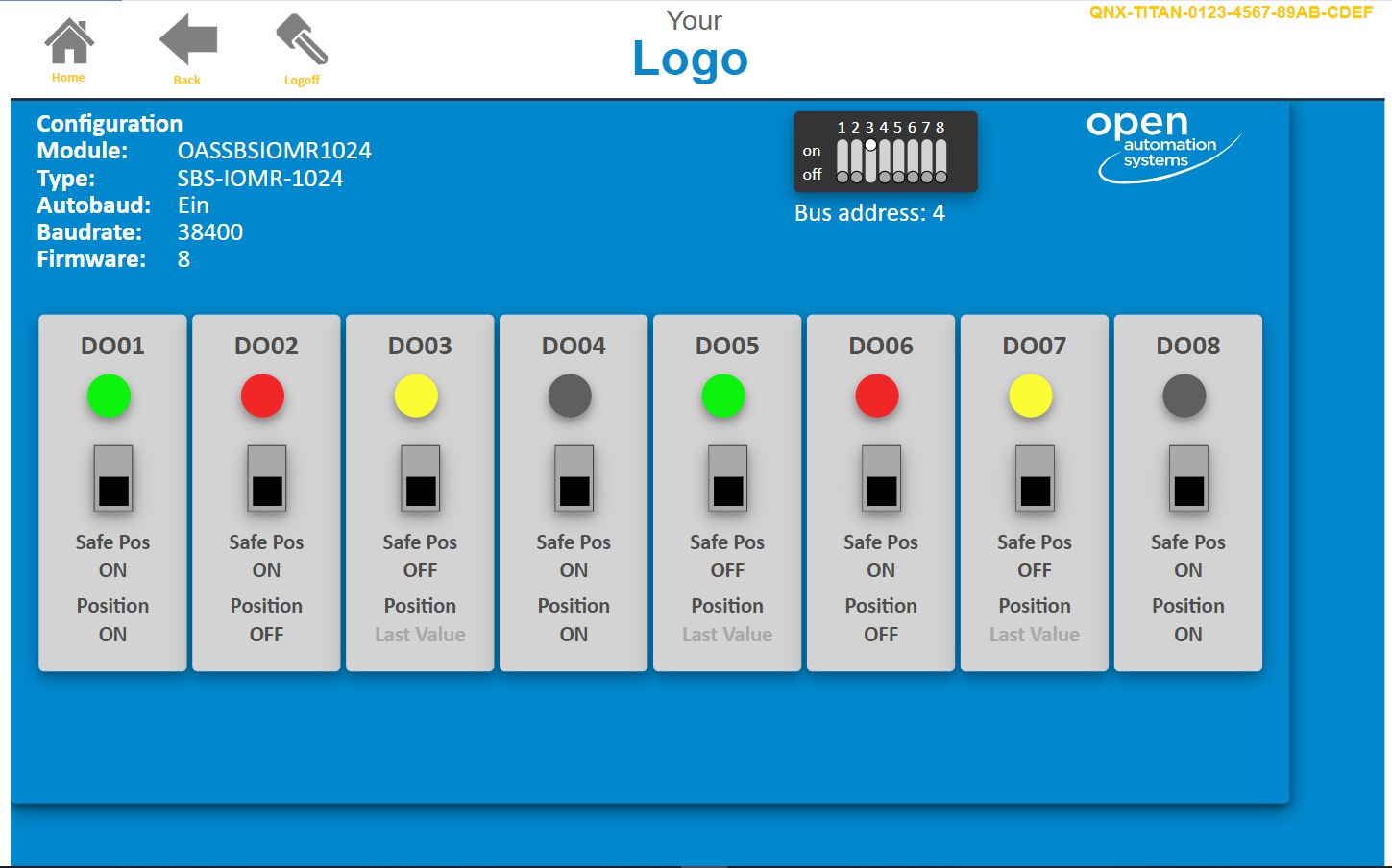

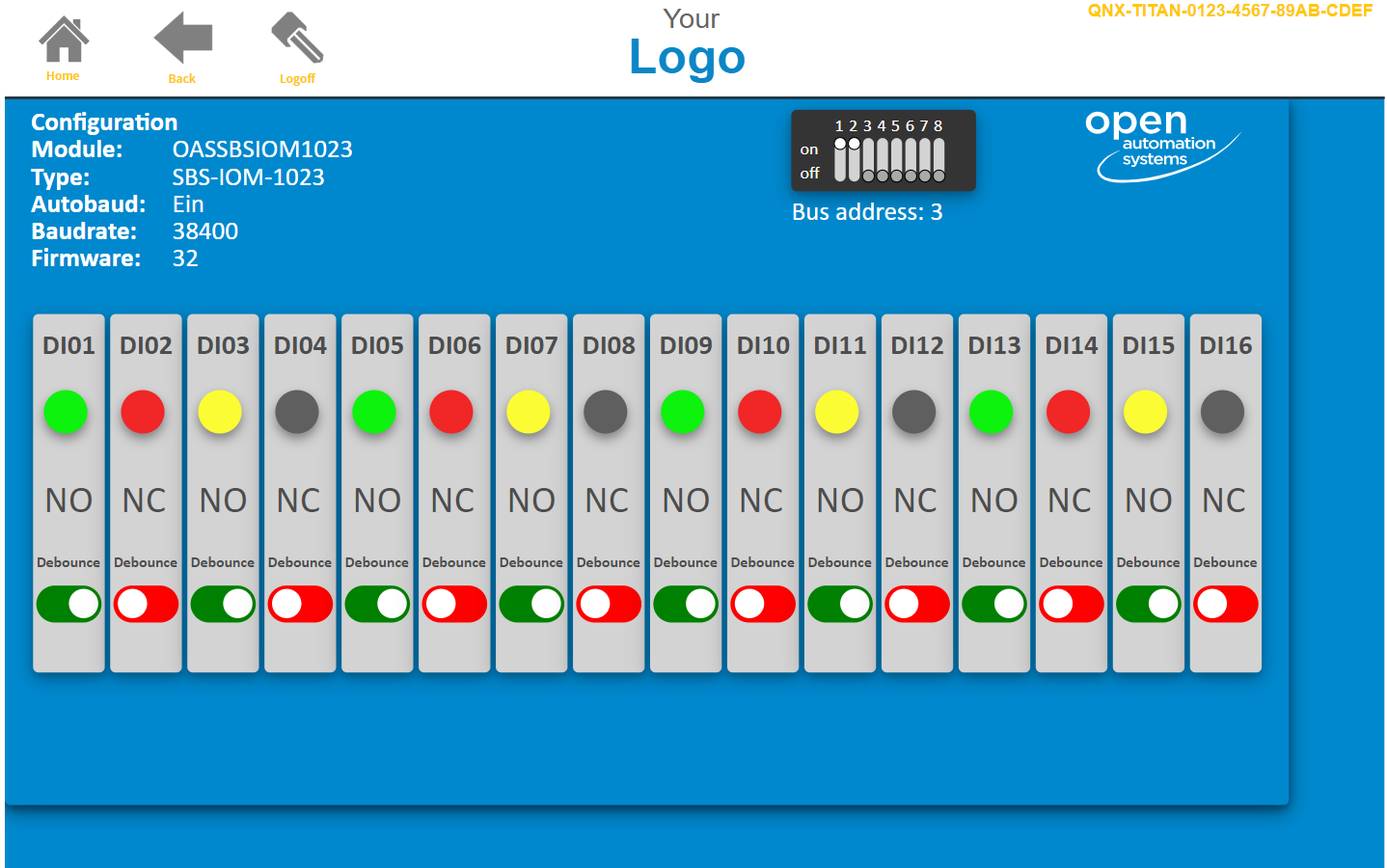

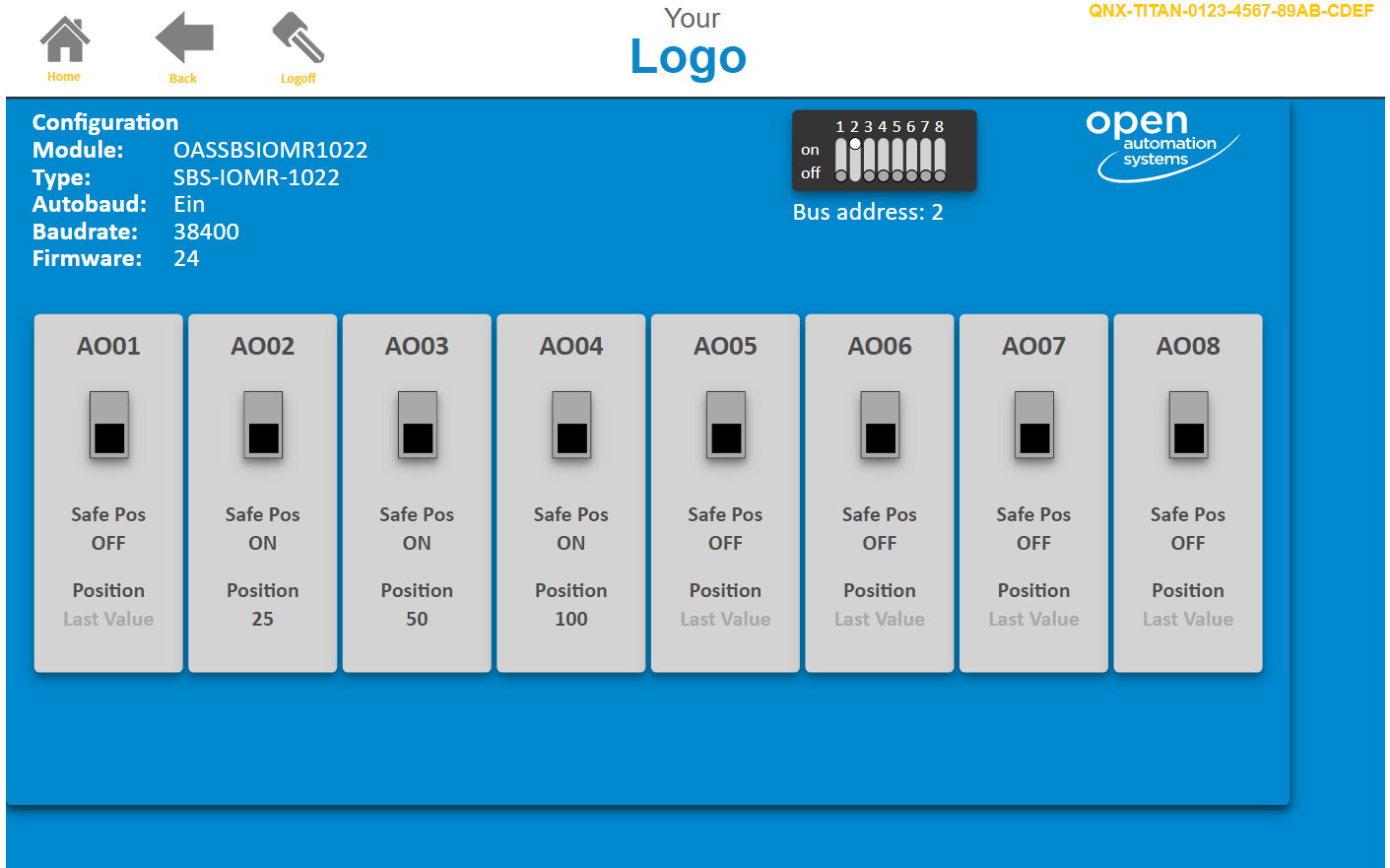

The OAS I/O WEB Module Configurator is used to configure communication with the controller in automatic mode via the RS 485 interface. The OAS I/O WEB Module Configurator is thus also a key to integrating the OAS I/O fieldbus modules into the Niagara platform. The configurable settings depend on the type of fieldbus module: digital or analog - according to the type of inputs and outputs, color change and LED color can be set for signaling active digital inputs or outputs, switching between normally open and normally closed, feedback protection, activation of safe position in case of malfunctions in the bus system, setting of analog characteristic curves, etc.

any configuration of communication settings is conveniently and partially automated via the OAS I/O WEB Module Configurator on the Niagara automation platform.
The configuration, monitoring and control of the inputs and outputs is implemented in automatic mode via the RS 485 interface.

Product brochure

Product SKU OAS-MODBUSUTILS-16

Versions

Niagara Powered Controller with N4.10 or higher should be connected to at least one OAS SBS IOM I/OM Modbus fieldbus module

Licensing

Up to 16 OAS SBS IOM I/OM Modbus fieldbus modules

Requirements

Niagara Powered Controller with N4.10 or higher should be connected to at least one OAS SBS IOM I/OM Modbus fieldbus module.

Reviews

You can not add the review on this product as you have not purchased this product yet.

FAQs

Frequently asked questions

Question: Is this module also compatible with other Modbus IO devices?

Answer:

No, this module is only compatible with OAS SBS IOM I/O fieldbus modules.

However, if you want a similar module for your or third party Modbus devices, feel free to contact us to develop it for you.

E-Mail: sales@oa-systems.de
Homepage: https://www.openautomationsystems.store/en

Question: How many Modbus devices does it support on one Modbus line?

Answer:

The license allows you to connect up to 16 Modbus devices on line (serial port).

If you need more devices, you have to purchase a second license for your Niagara controller and connect those devices to the Modbus line (serial port).

Question: Which Modbus type is currently supported by this module?

Answer:

This module currently supports Modbus RTU.

However, a Modbus TCP version is coming soon, which allows you to connect the OAS SBS IOM I/O fieldbus modules via Modbus TCP using a gateway.
