Driver for SMS Service via TCP/IP
This driver will allow you to send alarms and other data as an SMS message via TCP/IP. Text is configurable enabling you to set custom messages to multiple recipients. Other customizations include the ability to set a specific day and time ranges for alerts to be received by SMS.
The device.limit number in your license, is referred to registered and enabled Mobile Phone numbers (User defined in SMSRecipient).
i.e.:
If your license has a device.limit of 5, you can register 5 (or more) different phone numbers in your station’s database, but only 5 could be enabled simultaneously. The same phone number can be registered many times (in different SMSRecipient), consuming only one license slot.
Configure SMS Recipient including times, days, transitions, & text

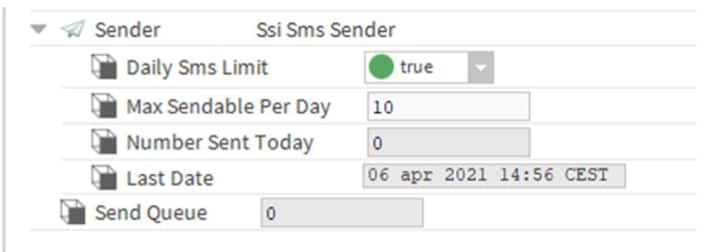

Configuring the SMS Sender
Daily SMS Limit
Inable/Disable the following options
Max Sendable Per Day
Max number of messages allowed per day.
Number Sent Today
Max number of messages sent during the current day.
Last Date
Date of the last sent message.
Send Queue
Number of messages sent during the current day.

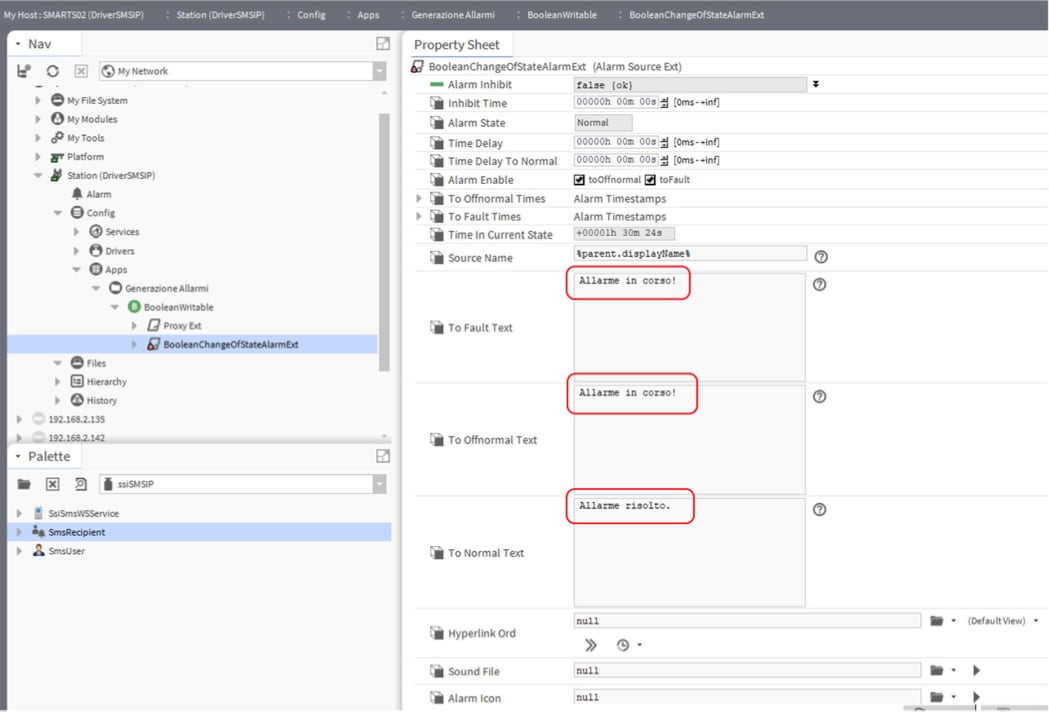

Boolean Change of State
In the Property Sheet of the Alarm Extension, it is possible to specify the messages that will be generated and sent when the alarm occurs. All the other fields are according to Tridium standard rules. Right click on the Boolean Writable component and select the Set option.

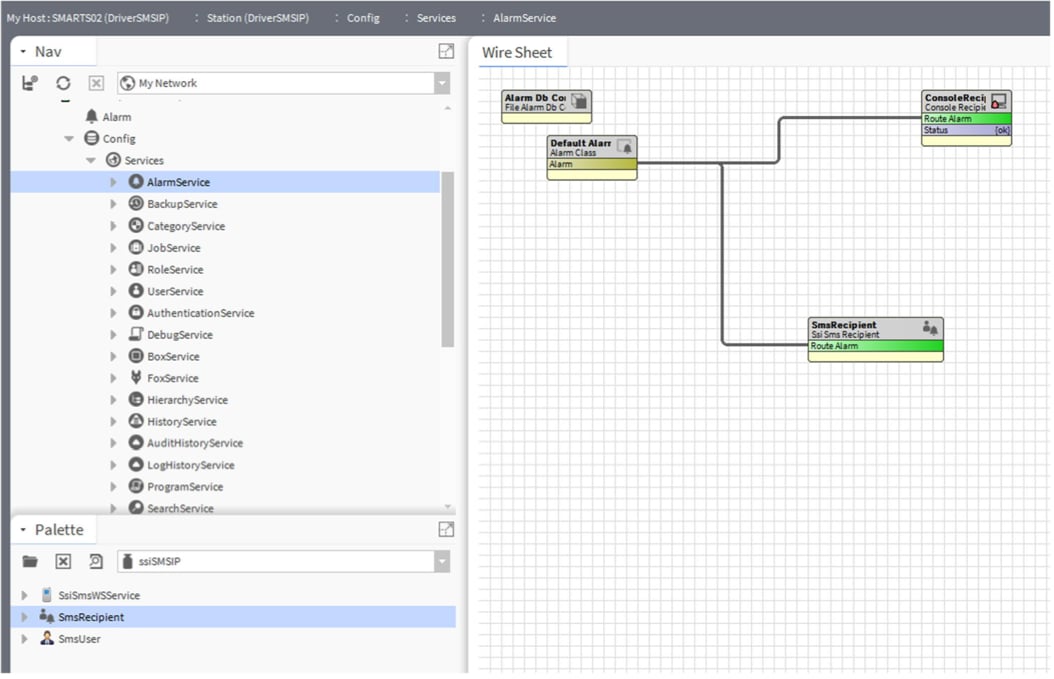

Installing and configuring the SmsRecipient
Select the SmsRecipient component in the palette and drag and drop it under the Services → AlarmServices folder of the running station.

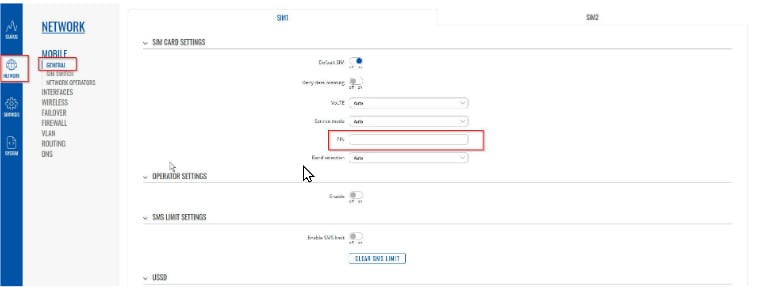

All Teltonika new FW 7.xx modems with SIM card tested RUT955
PIN and PUK set!

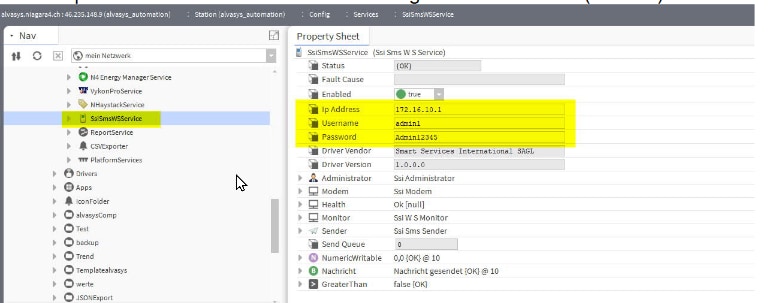

Now pull the SSISMSWSService in the Niagara Service under (Service)

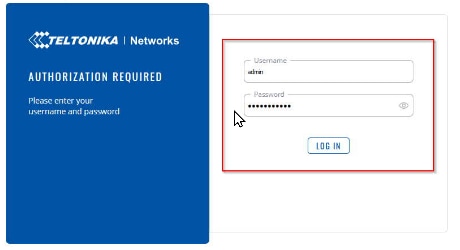

Same user and password from the Webinterace!
driver are running for different device from Teltonika RUT240/950/955/956/TRB245
Details
License update for all JACE8000/MAC36/Supervisor so that SMS can be sent via TCP/IP.For a maximum of x recipients.License goes for the MC100 and also Teltonika models (tested: Teltonika RUT950/955/240/956/TRB245)!
Product SKUnm-SMS Driver
Requirements
N4.7 +
Teltonika Firmware min. 7.xxx
the driver are running for different device from Teltonika RUT950/955/956/TRB245
