Teltonika SMS driver
-
Full customizationCustomize the contents of your text with string manipulation, BFormats or with built-in TextBuilder prepared with special keywords. Automatize text expedition with schedules or triggers. -
Unlimited ContactsCreate, group and manage unlimited amount of contact lists. Reference your lists across your application or over different projects, the sender will send SMS to all contacts without any additional linking. -
Built-in Alarm RecipientEasy and ready-to-use, the SmsAlarmRecipient automatically transforms alarms into SMS. -
Set your own limitsEach sender has it's own limits regarding the amount of SMS it can sent within a time frame. A trigger can be configured to defined when the sender limit should be reset. If the sender has reached it's limit, it's possible to define if a new SMS is to be discarded or saved for the next limit cycle. -
Don't loose a bit!SMS that were unable to reach the router or were over the sender limit can be stored for later attempts on delivery. The time frame when new attempts happen are configurable as well as the amount of tries before they are discarded. Meanwhile, you can check the contents of stand-by messages in the 'Malvar Teltonika Sms' folder within your station files in a JSON format. -
Fully documented componentsAll components within the Malvar Teltonika Sms module are fully documented using the build-in help framework, to help you never get lost during integration.
Full Costumization
- Customizable sms contents that can incorporate variables and special keywords;
- Use %ContactName%, %ContactNumber% or %ContactDescription% to use the respective value of the contact within the sms content;
- Custom text builder that allows concatenation of strings without input limit.

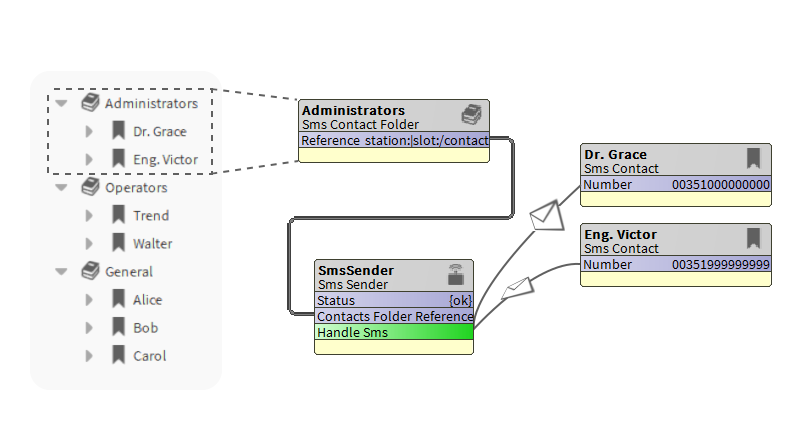

Unlimited Contacts
- Unlimited amount of contacts or groups;
- Organize your contacts as groups in any way you need with a special folder;
- Reference your contact groups throughout your application or template it to use across multiple projects.

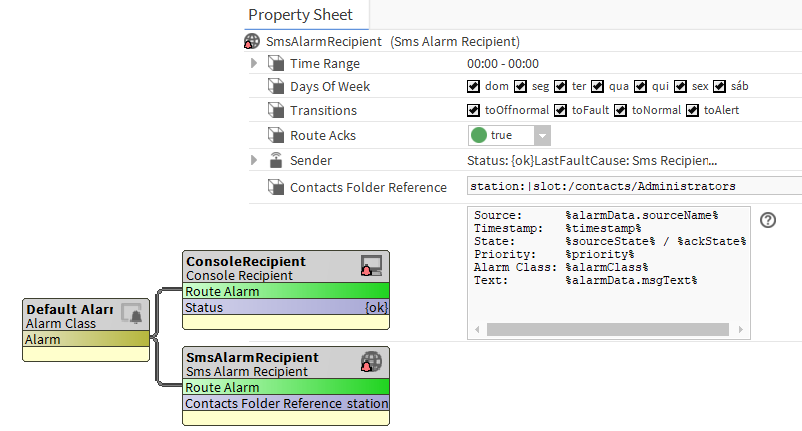

Built-in Alarm Recipient
- Ready-to-use and familiar alarm recipient;
- Automatically transform an alarm into SMS;

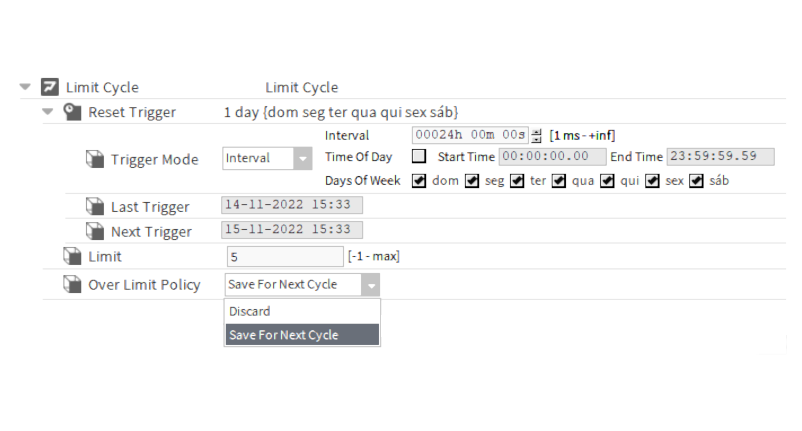

Set your own limits
- Set the amount of SMS that are available within a set time frame;
- Configure a trigger to reset the amount of available SMS in any way required;

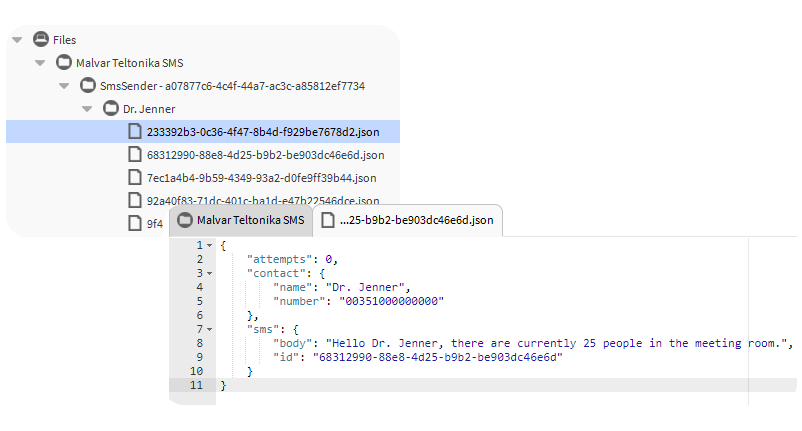

Don't loose a bit
- Over the limit SMS can be saved for another time when there are available SMS again.
- If the router was not able to be reached, SMS can be stored and are send again in another time;
- Configure the interval of times when retries happen;
- Configure the amount of retries before an sms is discarded;
- Check stand-by sms in the 'Malvar Teltonika Sms' folder within the station files in a readably JSON format.

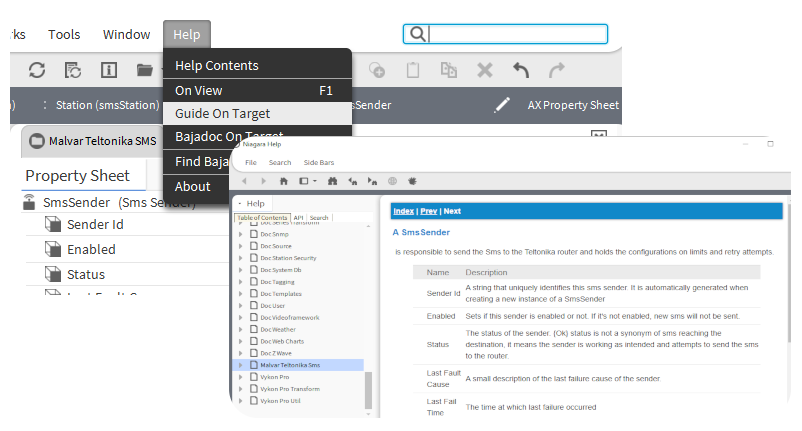

Fully Documented components
- Every component within Malvar Teltonika Sms module is fully documented for each property, action or topic;
- Documentation ready to consult within workbench itself through 'Guide on Target'.
Compatible with N4.7+; Compatible with all Teltonika RUT2xx, RUT3xx, RUT8xx and RUT9xx industrial routers.
Question: Are there any separate part codes to license this driver?
Answer: There’s no need for additional part codes. All part-codes required by this module are included.
Question: What is the license structure for this driver?
Answer: License structure is basic: one purchase = 1 Host ID Bind (usually to one supervisor or to one JACE). There are no other limits like number of contacts / points / SMS / senders etc. The limit on SMS and related costs are associated with the mobile plan and has nothing to do with the Niagara Framework or this module.
Question: Are Teltonika routers compatible with all networks?
Answer: Teltonika supports most types of networks, but it is necessary to buy the correct router version according with the region it will be operating. For example, RUT200 has 3 different variants for operation in Latin America / Europe, Australia, Asia-Pacific / Europe, The Middle East, Africa.
Question: Certificates show as expired (red) on the certificate manager, will the module still work?
Answer: Yes, it will work. Although the certificates show as expired the certificates provided for download are the ones that originally signed the module. (if you are still experiencing problems see the next FAQ)
Question: Getting an error with module signing when trying to use the module, what migth be the problem?
Answer: If you are getting an error message about module signing, this is probably due to the certificates not being present on both the station and the workbench. Please refer to the user guide and redo the steps for installing the certificates.
